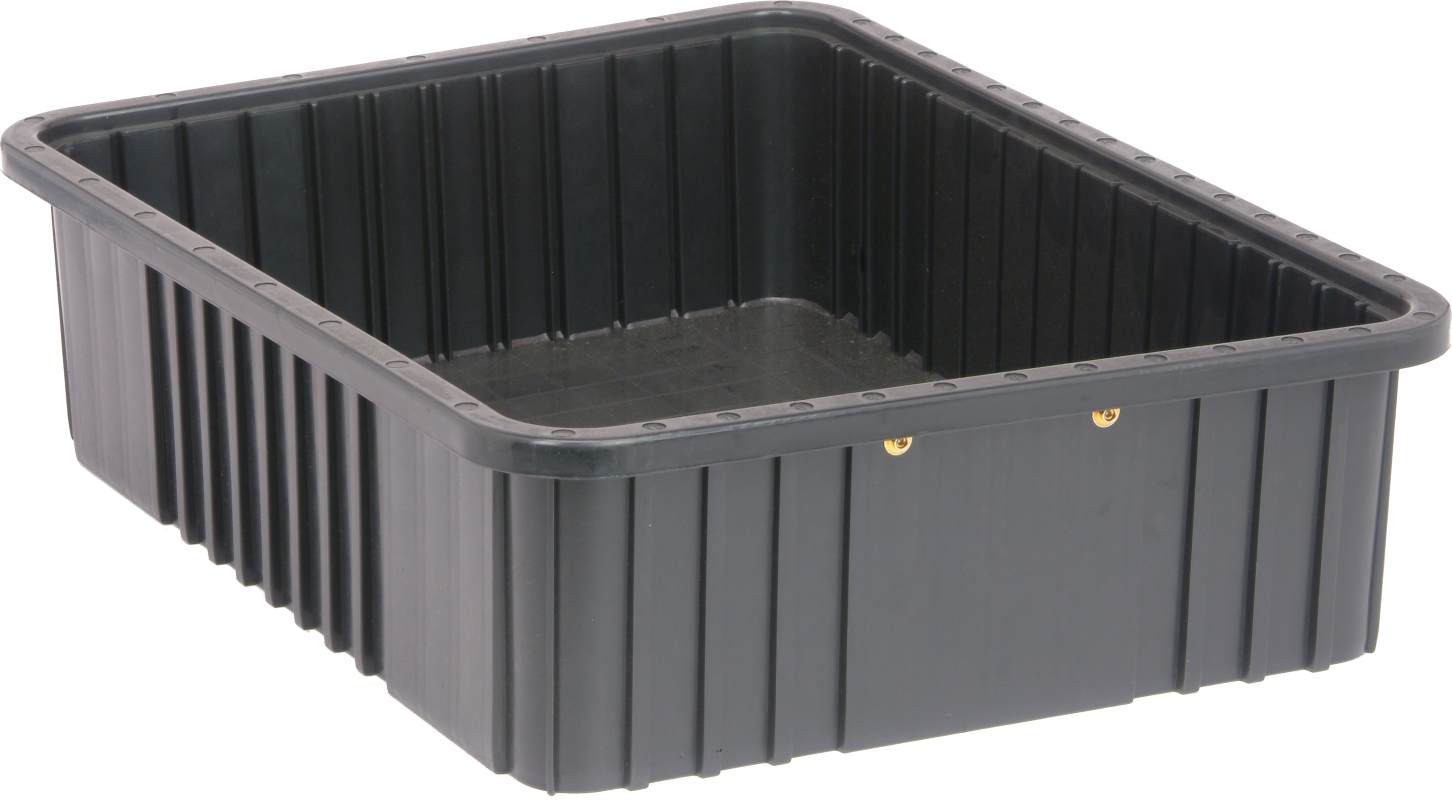

ESD Large Bin 6 is 22.4″ X 17.4″ X 6″ on the outside at top of bin(largest spot with draft). The inside dimension at bottom of bin is 20.1″ X 15.1″ X 5.9″ (product clearance height). This bin stacks with or without lid. Plastic bin does not nest.
ESD Bin is made from ESD Safe Black Conductive Material. Material is heavy duty, reusable with bin rated for 40 Lbs. Bin weight is 3.0 Lbs.
ESD Large Bin – Divider Insert Options
- Leave area open. Bottom of bin will be 20.1″ X 15.1″ X 5.9″ tall.
- Add ESD dividers on 1.25″ centers. Bin has 15 slots on long side for short dividers and 11 slots on short side for long dividers.
- Add a foam insert tray which can be made from several materials including 2# pink polyethylene foam, polyurethane foam, and conductive black foam. $95 NRE for custom cavity sizes.
- Add a custom plastic ESD tray. Materials stocked include conductive styrene, anti-static PVC, anti-static PETG, and inherently dissipative PETG.
- For non esd bin option, click link DCE3060.
