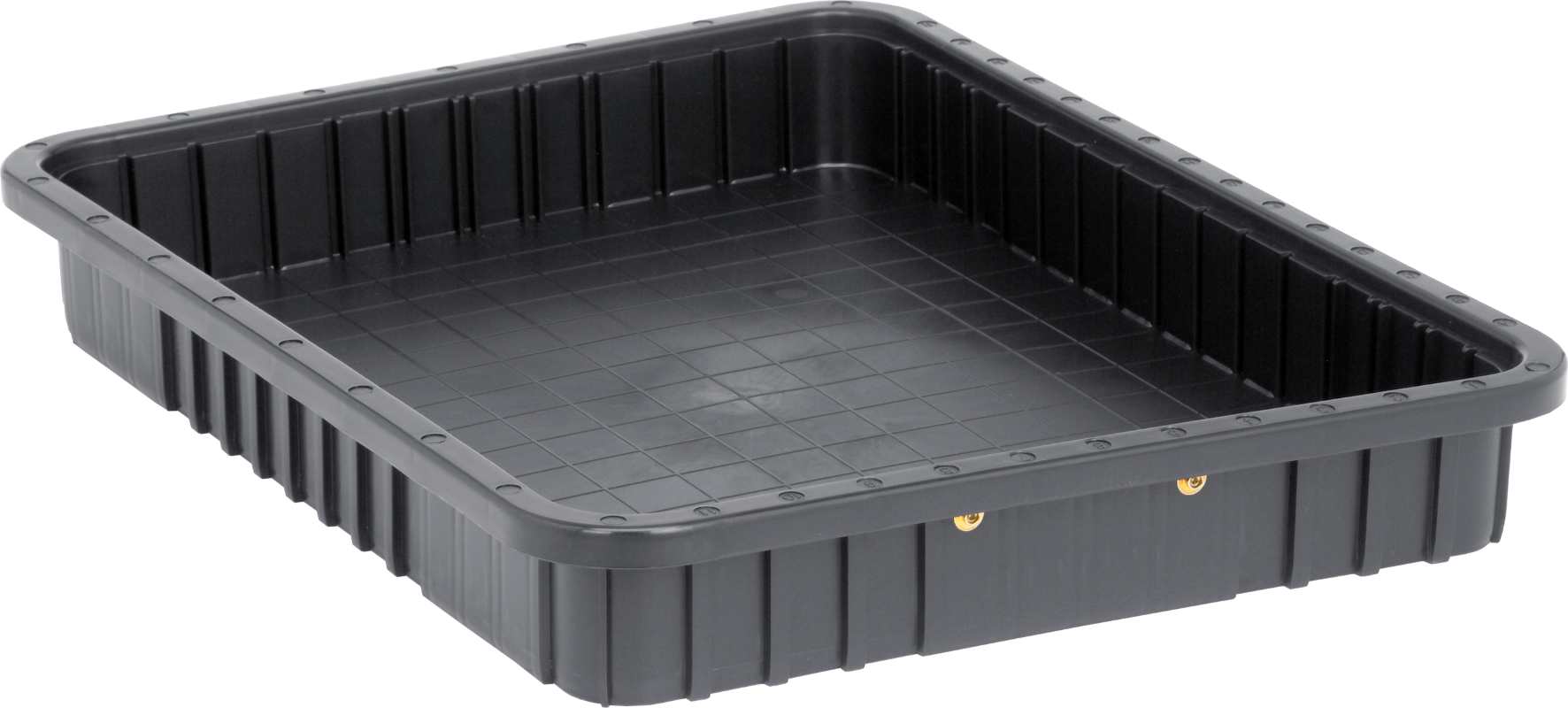

ESD Large Bin-Tray 2.5″ High

  • Bin ID 20-5/8″ X 15-5/8″ X 2-1/2″
  • Black ESD-Safe Divider Bin
  • Sold 6 per case at 20lbs.  Minimum buy is 1 case.
  • ESD Insert Trays or ESD Dividers sold separately.
SKU: DGE93030CO Category:

Description

ESD-Safe Conductive Large Bin 5 is 22-1/2″ X 17-1/2″ X 3″ on the outside at top of bin(largest spot with draft).  The inside dimension at bottom of bin is 20-5/8″ X 15-5/8″ X 2-1/2″. This low profile conductive bin and tray stacks with or without lid. Plastic bin does not nest.

ESD Bin is made from ESD Safe Black Conductive Material. Material is heavy duty, reusable with bin rated for 40 Lbs.


ESD Large Bin – Divider Insert Options

  1. Leave area open.  Bottom of bin will be 20-5/8″ X 15-5/8″ X 2-1/2″
  2. Add ESD dividers on 1.25″ centers.  Bin has 15 slots on long side for short dividers and 11 slots on short side for long dividers. Large Bin ESD Divider Layout
  3. Add a foam insert tray which can be made from several materials including 2# pink polyethylene foam, polyurethane foam, and conductive black foam. $95 NRE for custom cavity sizes.
  4. Add a custom plastic ESD tray.  Materials stocked include conductive styrene, anti-static PVC, anti-static PETG, and inherently dissipative PETG.

Specifications

Tray Outer Dimensions

22-1/2 X 17-1/2 X 3

Tray Inner Dimensions

20-5/8 X 15-5/8 X 2-1/2

Divider Height

2.5

Lid

Long Divider Max #

DLE93030CO

Short Divider Max #

DSE93030CO
